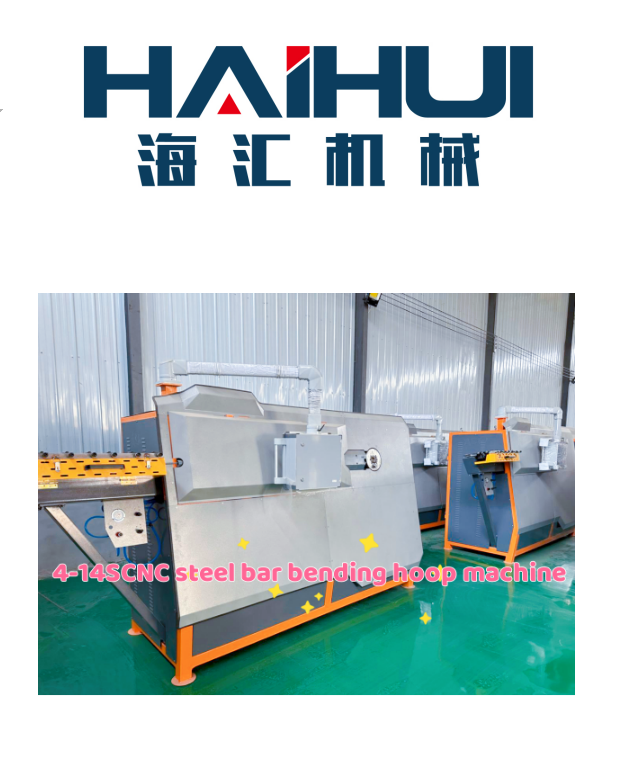

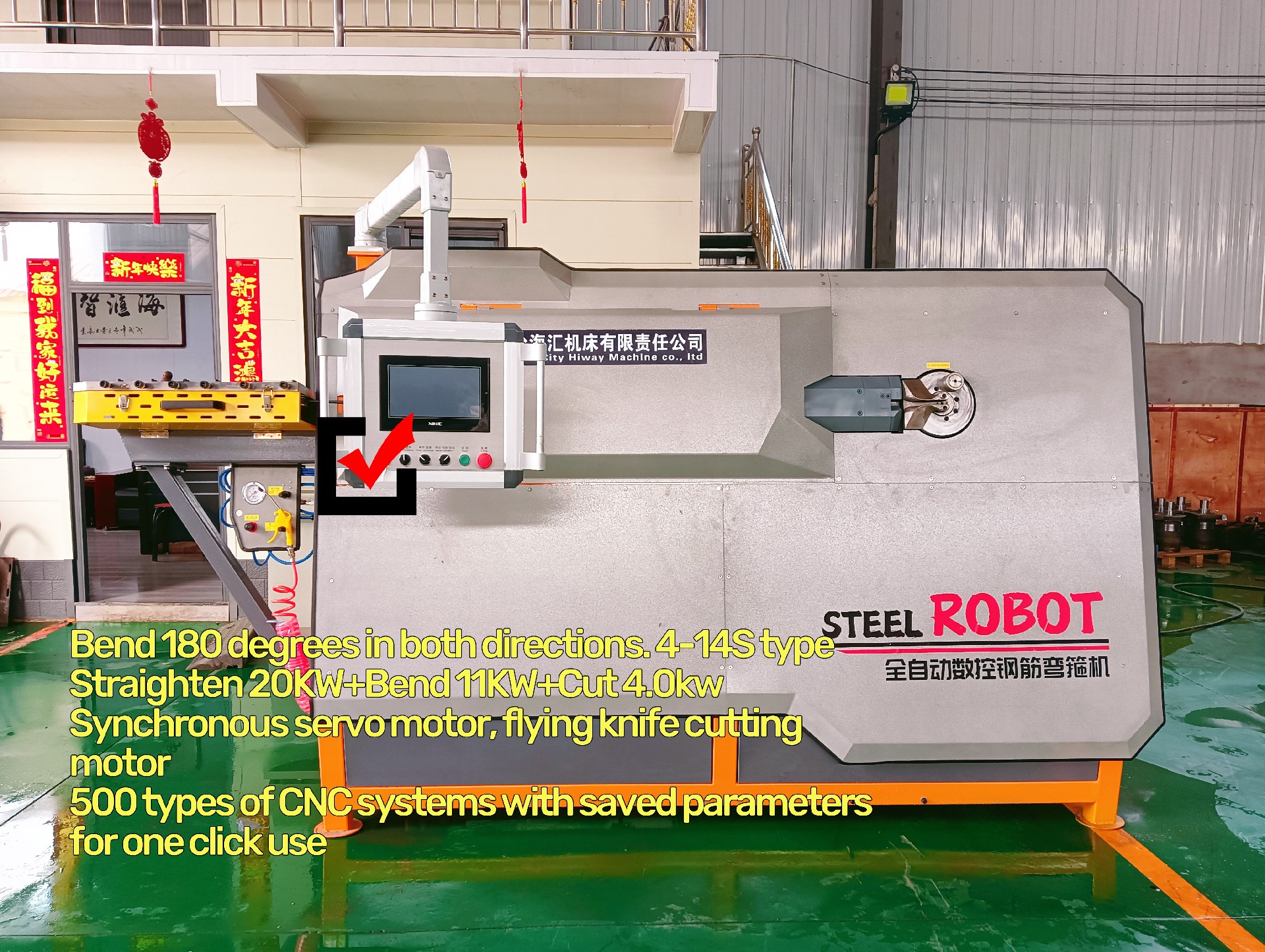

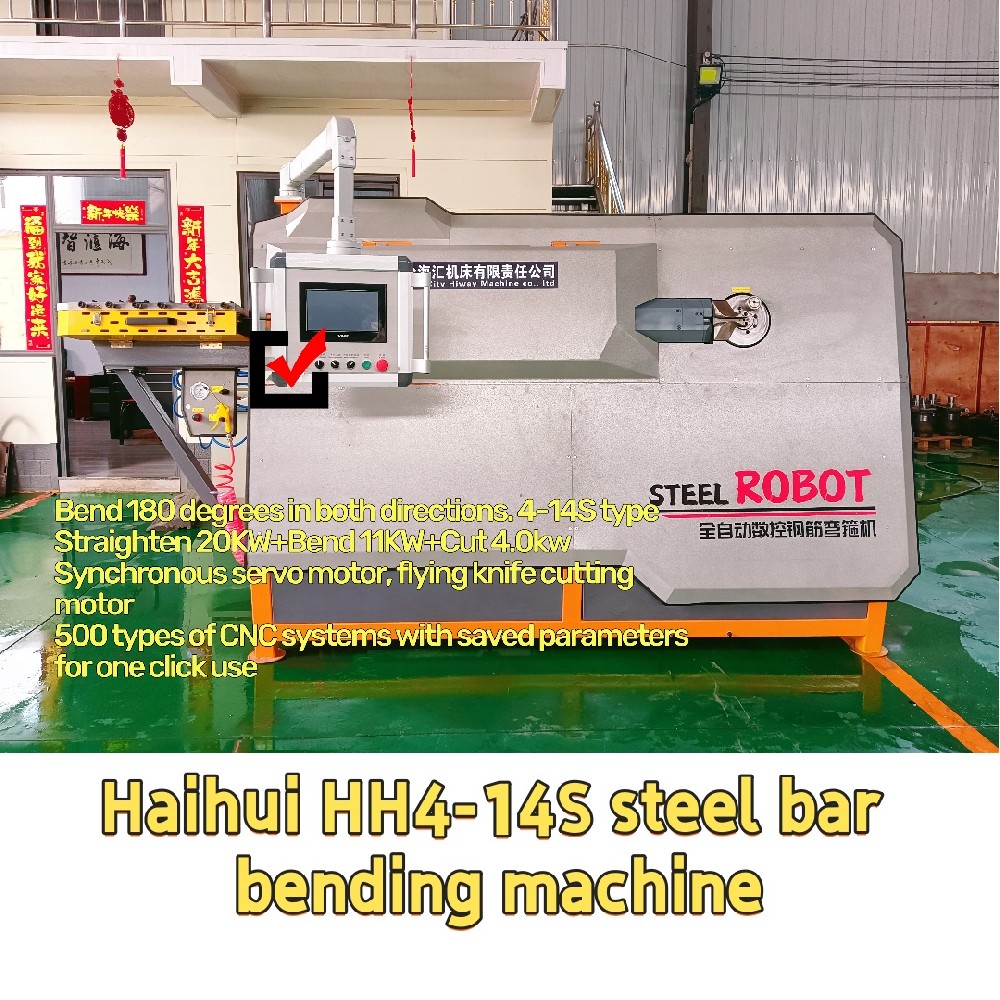

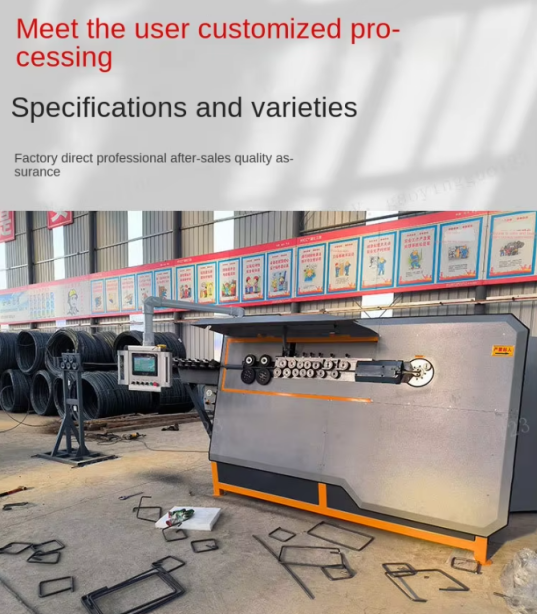

HH4-14S CNC steel bar bending hoop machine

processing capacity

Scope of application of steel bars: It can handle smooth round cold-rolled and hot-rolled steel bars with a single wire diameter of 4-14mm and a double wire diameter of 4-10mm.

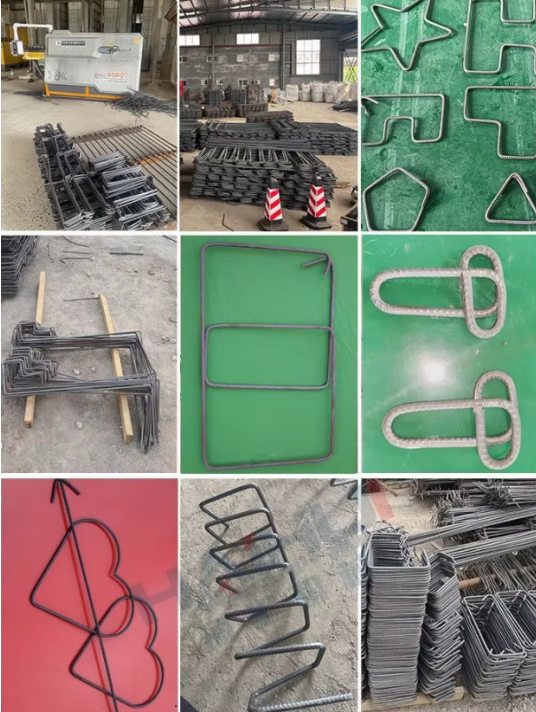

Hoop size: The side length of the hoop is usually within a certain range, and multiple sizes of hoop can be processed to meet different building requirements.

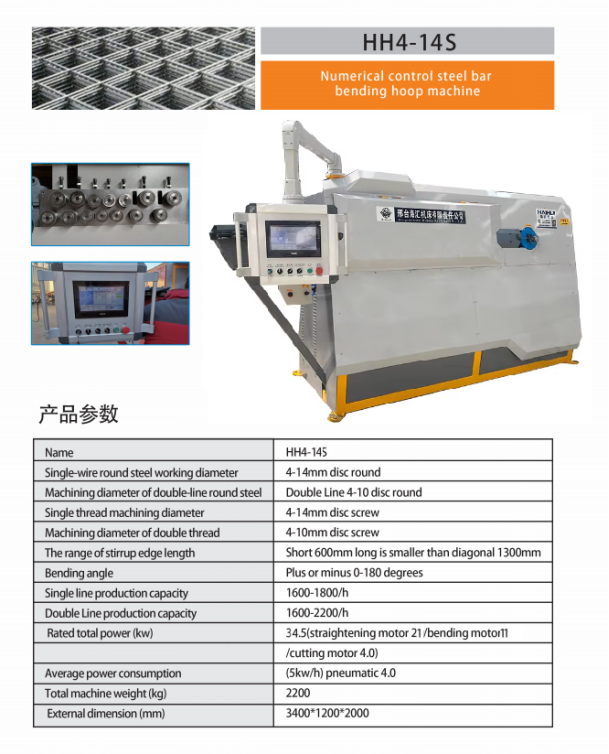

performance parameters

Bending speed: up to 1000 °/S and above, capable of quickly completing the bending operation of steel bars and improving production efficiency.

Traction speed: relatively fast, generally up to 90-110m/min, can achieve efficient steel bar conveying.

Angle accuracy: The angle accuracy is controlled within ± 1 ° to ensure the accuracy of the steel bar bending angle.

Length accuracy: The length accuracy can reach ± 1mm, ensuring the accuracy of the hoop size.

Features

Integrated function: integrating straightening, bending forming, and cutting functions into one, reducing manual operation steps from coil raw materials to hoop products in one molding process.

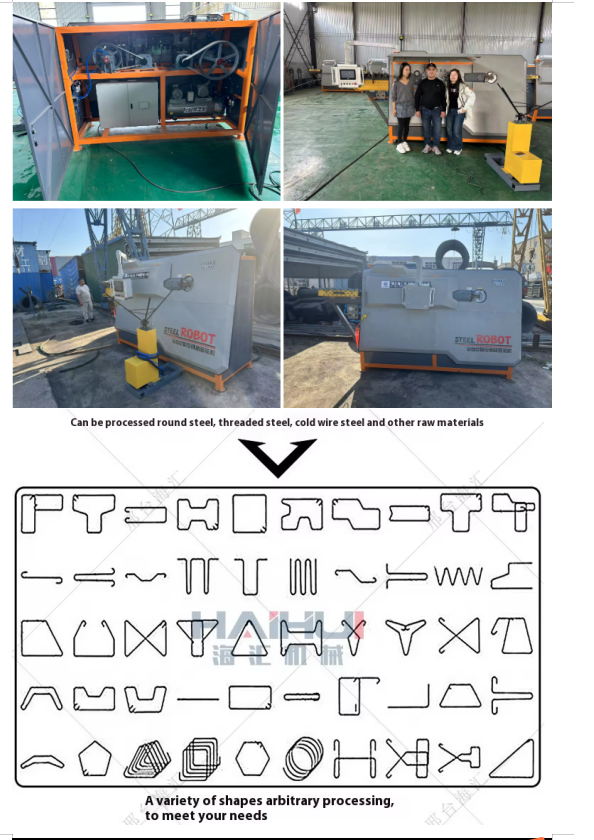

Intelligent control: Adopting Taiwan imported PLC computer system or fully automatic microcomputer control, it can process various shapes such as square, rectangle, diamond, polygon, etc. It can also be configured with automatic feeding device as needed to improve feeding speed.

Cost saving: Only one person is needed to operate, which can save a lot of labor costs; Continuous molding during work, with almost no loss of steel bar heads, saving raw material costs.

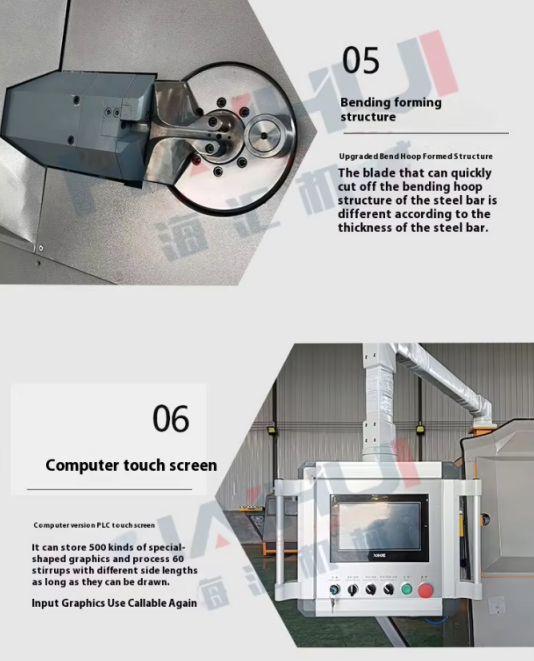

Easy to operate: Equipped with a touch screen control system, the interface is intuitive, the operation is simple, the parameter settings are convenient, and both manual and automatic operation modes can be achieved.

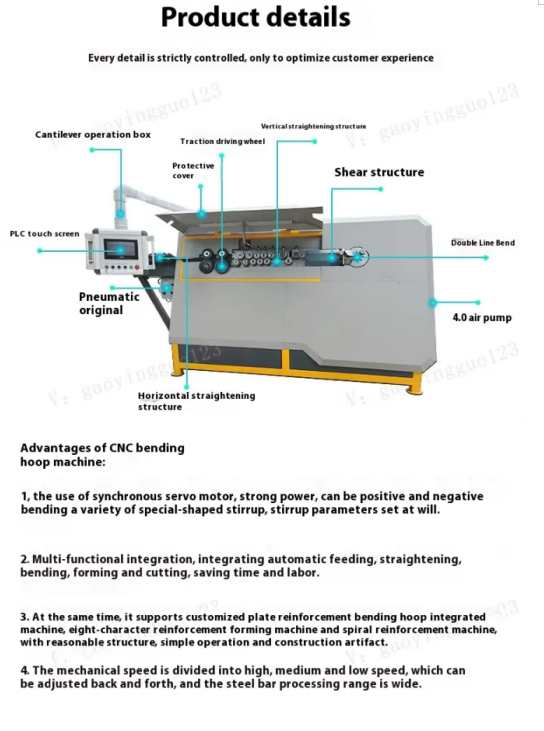

structural design

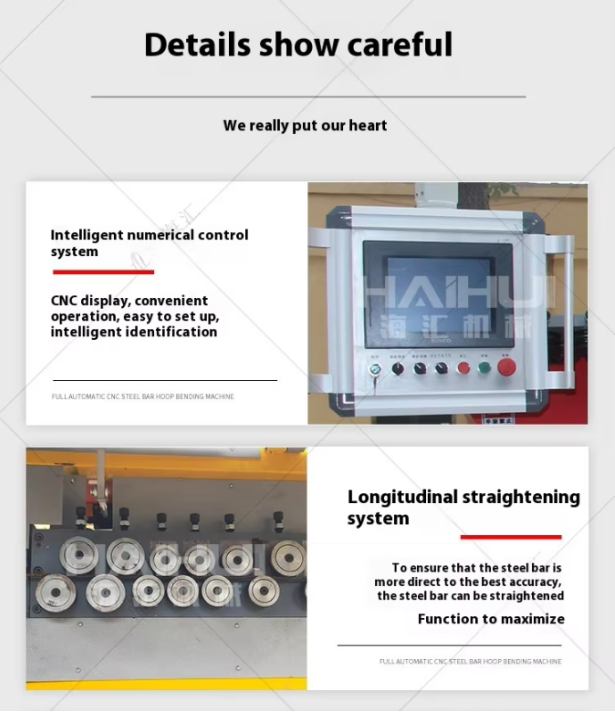

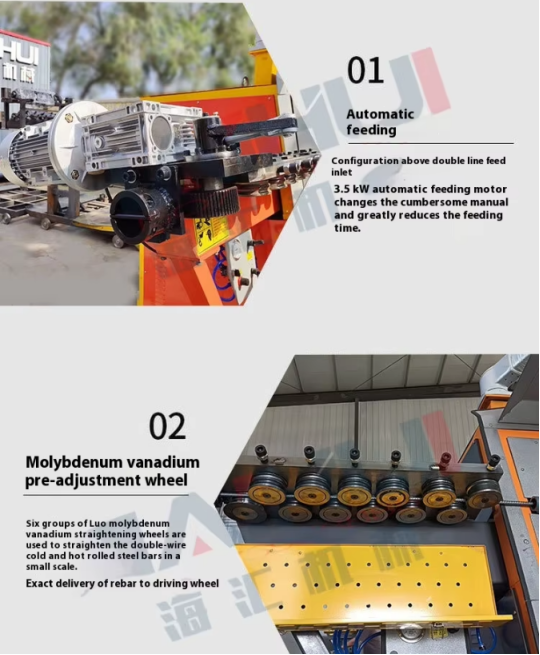

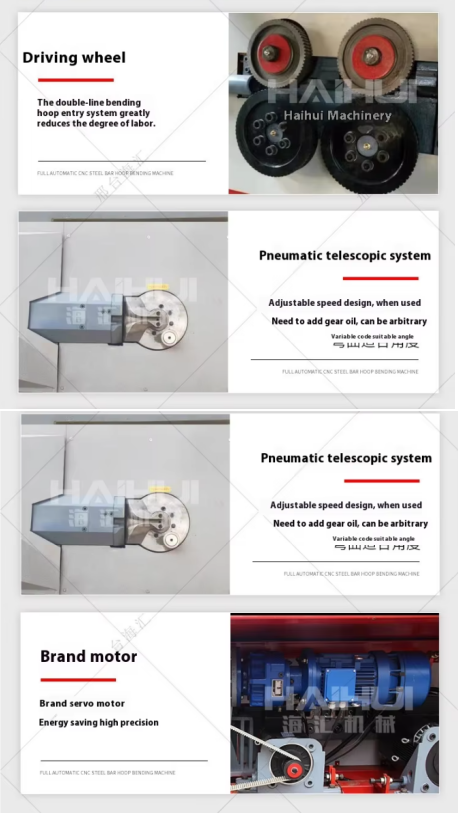

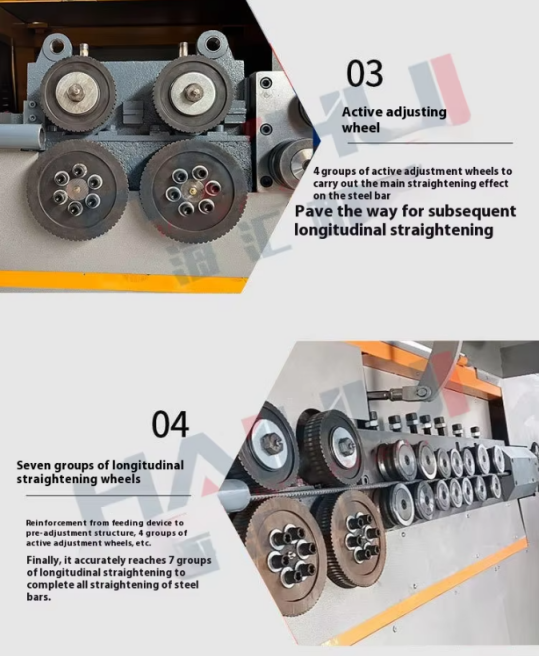

Feeding mechanism: The traction wheel is equipped with anti slip grooves to prevent the steel bars from slipping; End face key anti loosening fastening technology, and installation of a flexible encoder mechanism with seismic resistance function to ensure the accuracy of steel bar feeding.

Cutting mechanism: using a flying knife cutting motor, the frequency of cutting steel bars in a single operation is high; Split fixed blade design, no need for overall replacement, fixed blade can be used on both sides, and movable blade can be used on all four sides.
