HH50-5 Flat Steel Bending & Strap Forming Machine | HAIHUI

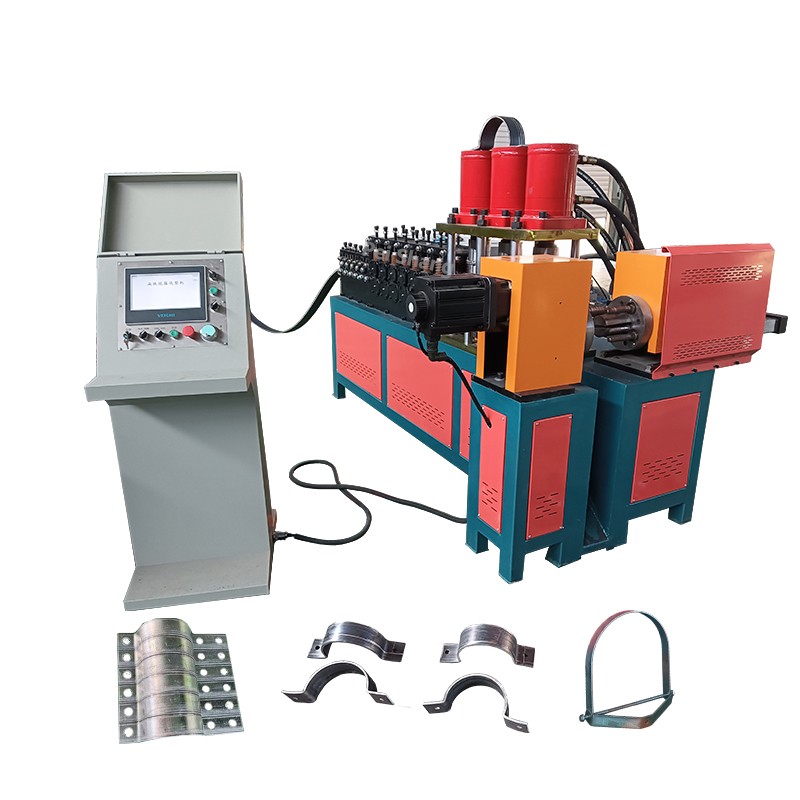

HH50-5 Flat Steel Forming Machine

The HH50-5 flat steel bending machine integrates automatic material            feeding, bending, punching and cutting into one production system.            It is suitable for manufacturers requiring efficient batch production            of flat steel straps, clamps, brackets and various formed metal parts.

The machine uses servo motors for feeding, bending and telescopic            movement. Combined with a hydraulic station and touchscreen control            system, operators can conveniently set production parameters and            improve manufacturing efficiency.

Main Features

Automatic Processing                Automatic feeding, bending, punching and cutting reduce manual                operation and improve production efficiency.

Servo Control System                Servo-controlled feeding and bending systems provide stable                positioning and repeatable forming performance.

High-Speed Bending                Maximum bending speed reaches up to 800°/sec for efficient                batch production.

Hydraulic Punching & Cutting                Independent hydraulic cylinders provide reliable punching and                cutting performance for flat steel processing.

Touchscreen Operation                Equipped with a 10-inch XINJE touchscreen for convenient                parameter setting and machine operation.

Heavy-Duty Material Stand                The flat bar wire-drawing stand provides up to 3 tons of                loading capacity for continuous production.

HH50-5 Technical Parameters

Applications

The HH50-5 automatic flat steel strap forming machine can be used            for producing different types of flat steel formed components and            is suitable for continuous industrial production.

• Flat steel straps and clamps

• Metal brackets and connecting parts

• Flat bar bending and forming

• Punched flat steel components

• Industrial metal fastening parts

• Customized flat steel products

Why Choose HAIHUI?

HAIHUI focuses on automatic steel processing and metal forming            machinery. We provide machine configuration support, technical            consultation and production solutions according to customers'            processing requirements.

Factory Direct Supply                Direct communication with the machine manufacturer for                technical configuration and quotation.

Customized Solutions                Machine configuration can be discussed according to your                material size and finished product requirements.

Technical Support                Professional support for machine operation, installation                guidance and production requirements.

International Supply                Machines and production solutions are available for customers                in international markets.

Frequently Asked Questions

What material can the HH50-5 process?

The HH50-5 is mainly designed for automatic processing and forming            of flat steel materials. Please send us your material dimensions            and finished product drawing for confirmation.

Can the machine punch and cut automatically?

Yes. The machine is equipped with hydraulic punching and cut-off            cylinders to support integrated automatic production.

Can you recommend a machine according to my product?

Yes. Send us the dimensions, material specifications and drawings            of the parts you need to produce. Our team can recommend a suitable            machine configuration.
