Flat iron hoop forming machine # Hoop machine # Automation equipment # Equipment manufacturer # Pipe clamp machine

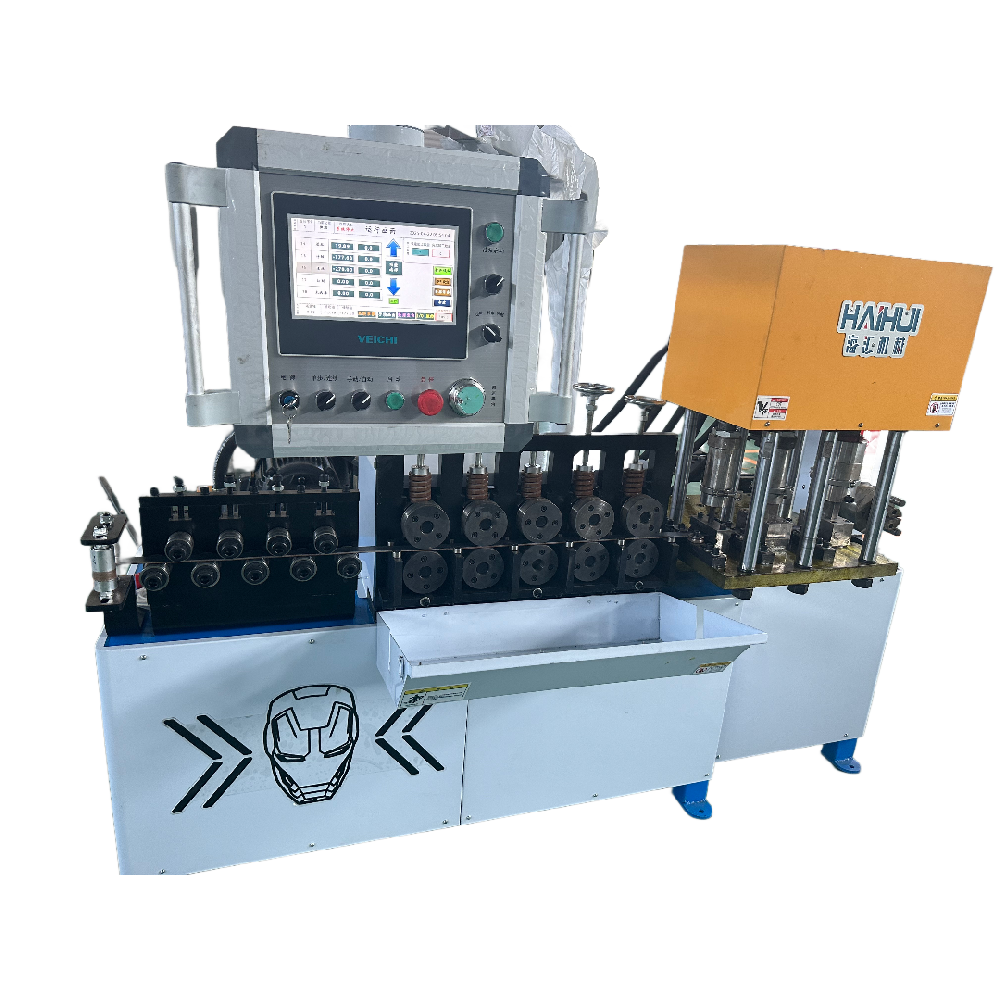

The flat iron hoop forming machine is a sophisticated metalworking equipment designed to bend flat iron or stainless steel into specific shapes with high precision and efficiency.
Feeding and Straightening: The operator inserts the flat iron into the feeding port on the left side of the machine. Driven by a servo motor, the machine's feeding and straightening mechanism then adjusts the flat iron to ensure it is straight and properly positioned for subsequent processing.
Power and Pressure Provision: The hydraulic oil station motor starts running, supplying power to the hydraulic system. This system, which consists of components like the machine tool, pressure head, pressing plate, and mold, is responsible for generating the necessary pressure and force for the forming process.
Processing and Shaping: Guided by the control system, the hydraulic system uses the pressure to perform operations such as punching, stamping, and cutting on the flat iron. The bending structure then bends the flat iron into the desired shape according to the preset parameters. Finally, the telescopic motor returns to the hydraulic system to complete the cutting task, separating the formed hoop from the remaining flat iron.
Mechanical Structure: This is the physical framework of the machine, including the machine tool, pressure head, pressing plate, and molds. The machine tool provides the base support, while the pressure head and pressing plate work together to apply pressure to the flat iron during processing. The molds, which come in various specifications, determine the final shape of the hoops.
Hydraulic System: The hydraulic system is responsible for generating and transmitting the pressure and power required for the machine's operation. It consists of hydraulic cylinders, pumps, valves, and other components. The hydraulic cylinders control the movement of the machine tool and pressure head, ensuring precise and stable operation.
Transmission System: Composed of gears, chains, or belts, the transmission system transfers the power from the motor to the machine tool and pressure head. This ensures smooth and efficient power transmission, enabling the machine to operate at high speeds and with high precision.
Control System: The control system, which is the "brain" of the machine, consists of electrical components and programs. It allows operators to set parameters such as the size, shape, and processing speed of the hoops through a numerical control touch screen. The control system then precisely controls the operation of each component of the machine to ensure the accuracy and quality of the formed hoops.
Power Industry: In the construction of power facilities, the machine is used to produce hoops that meet industry standards for installing and fixing utility poles, transmission towers, and transformers, ensuring the stable operation of power facilities.
Construction Industry: It is widely used in building construction to produce hoops of various specifications and shapes for connecting and securing building structures and materials like steel bars, steel pipes, and supports, as well as for installing and maintaining pipelines and cable trays.
Transportation Industry: In the construction of transportation infrastructure such as bridges, tunnels, and roads, the machine can produce hoops that can adapt to complex working conditions for fixing and supporting various components, ensuring the stability and safety of the structures.
Energy Industry: In the oil and gas sectors, the machine plays a vital role in manufacturing pipe hoops, which are essential for fastening and sealing pipelines. This is especially important in long-distance and large-diameter pipeline projects, where its production capacity and processing accuracy provide a reliable guarantee for the energy industry.
Photovoltaic Industry: With the rapid development of the photovoltaic industry, the machine is used to produce hoops for photovoltaic brackets, improving the installation efficiency and stability of solar panels.
The market for flat iron hoop forming machines is experiencing robust growth. Driven by the expansion of infrastructure investment and the upgrading of intelligent manufacturing, the demand for these machines is expected to continue to rise. Key trends in the market include the integration of intelligent technology, with machines being equipped with IoT monitoring functions and adaptive pressure adjustment technology becoming the standard for high-end models.
∷
